Overview

In my erstwhile articles (Enhancing Streaming and Request Handling Efficiency with gRPC and Coroutines: Parts 3 and 4), I covered the general concepts behind request handling and streaming. However, all challenge calls for a customized solution. While coroutines can boost performance in any scenarios, they might besides add unnecessary complexity, making the code harder to keep without crucial gains. Likewise, asynchronous streaming can sometimes underperform compared to synchronous methods if not implemented thoughtfully, frequently due to excessive context switching.

In this article, I’ll show how I optimized streaming algorithms in Terrarium to improve performance. I hope this approach can aid you enhance your own implementations as well.

The problem

First, let’s clarify the goal. In Terrarium, streaming serves multiple purposes, but here I will focus specifically on implementing SQL support. The core thought is to usage a virtual stream wrapper, where each streamer performs an operation and passes its consequence to the next streamer in the chain. In another words, streams are connected sequentially so that erstwhile a value is produced it flows through all streams until a final consequence is obtained.

To illustrate, consider the following example with a products table (Table 1):

Suppose we want to calculate the gross price of each product utilizing the query:

SELECT ROUND(net_price * (1 + vat_percent / 100), 2) AS gross_price FROM products;

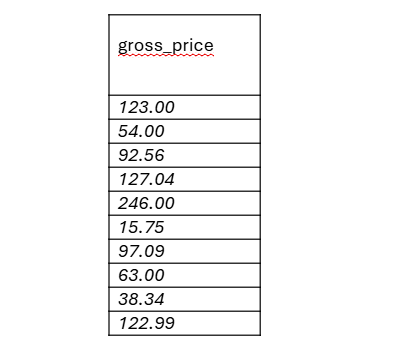

The expected consequence is simply a single-column output of gross prices, as shown in Table 2. Now, let's examine how to chain streams to produce this result. After parsing, an Abstract Syntax Tree (AST) is generated and passed to the interpreter, which builds a chain of streamers. Each streamer performs a single operation and forwards its output to the next.

One first approach is to organize streams in a tree structure (see Image 1). Starting from the root, calling operator() triggers recursive calls to another streamers until reaching the leaves, which terminate recursion and begin returning values.

For the calculation example:

Retrieve the vat_percent value from the table and divide it by 100.
Add 1 to the division result.
Multiply this sum by the net_price value from the table.
Round the final consequence to 2 decimal places.

This series requires 8 streams: 2 of them fetch column values (vat_percent and net_price), while the others execute arithmetic operations without additional data access.

Since in Terrarium data is stored on individual nodes alternatively than on the gateway, any data retrieval requires querying these workers. To balance workload and prevent any single individual from becoming overloaded, we usage sharding based on a shard key that determines how data is partitioned.

When fetching a column, we must query all workers (currently 2,160) to check if they hold the applicable data segment. Consequently, each table query involves beginning 2,160 channels to collect the required data.

Using the streaming approach described earlier, the number of channels doubles—since 2 streams independently fetch data for net_price and vat_percent—resulting in 4,320 open channels.

This approach introduces respective challenges:

Excessive number of streams: We open more streams than necessary. Ideally, we should fetch all required data in a single call to avoid overwhelming the network layer.
Inefficient data chunking: Streaming tiny chunks, specified as fetching 1 column at a time, underutilizes the network. To maximize throughput, data should be sent in packets close to the MTU size (typically 1460 bytes).
Limited parallelism: erstwhile calling operator() on a stream, data is fetched from only 1 individual at a time, leaving the remaining 2,159 workers idle. We request a strategy to collect data from all workers in parallel.
Lack of callback support: The current recursive approach makes it hard to integrate gRPC’s asynchronous callback mechanisms.
Coroutines complexity: To leverage coroutines effectively, each stream would request to be rewritten as a coroutine, which can be challenging to implement consistently.
Heterogeneous column types: Columns are stored as variants and can hold numbers, strings, maps, or another types. Since Terrarium supports schemaless data, columns may contain arbitrary data types.
Memory management challenges: We want to process as much data in-memory as possible for speed, but handling very large datasets (e.g., 100 million rows) can exceed memory limits.
JOIN operations: Fetching data from multiple tables adds further complexity, as data must be retrieved and combined efficiently across workers.
And many more challenges beyond these.

In the following sections, I will explain how we redesigned the algorithm to improve streaming performance and address these challenges effectively.

Fetching data

When executing a query like SELECT * FROM table;, we make a single stream that fetches the full row each time operator() is called. This is perfect due to the fact that it allows us to handle data retrieval in a single call—exactly the behaviour we want, even for more complex queries. However, users can specify more precise filters, specified as:

SELECT * FROM table WHERE object_id = 8; SELECT * FROM table WHERE object_id IN (8, 10);

If object_id is besides the shard_key, we can calculate which individual holds the data. alternatively of querying all 2,160 workers, we contact just one, importantly improving performance.

To support this, we request 3 types of data-fetching strategies:

Broadcast stream – queries all workers.
Worker stream – queries a circumstantial worker.
Partial broadcast stream – queries a subset of workers.

These can be unified under a single class with 3 methods:

BuildStreamForAllWorkers();
BuildStreamForAWorker();
BuildStreamForAFewWorkers();

Each method builds the essential streams based on the shard_key. The interpreter analyzes the query to identify all columns that request to be fetched, and then calls the appropriate method.

As shown in Image 2, alternatively of building a tree of streams, we construct a chain. Each stream instance knows in advance which columns to consume—for example, positions 0, 1. Based on how it's initialized. This plan avoids creating multiple streams for each individual column. As a result:

We reduce the number of open channels per worker.
We minimize data transfer by avoiding redundant column fetching.
We lower the number of stream object and operator() calls.

Another optimization relates to constant values. Previously, we streamed them for all row, even though they never change. A simple solution, which I implemented in the circular stream, involves storing constant values as class members alternatively of streaming them. Extending this approach to the Divide and Add streams can reduce memory usage on a per-row basis.

Of course, any queries do operate on 2 columns—for example:

SELECT net_price + vat_percent FROM table;

To support both constants and column-based operands, I usage a binary stream plan that holds 2 std::optional<Variant> members. The logic is as follows:

If the first variant is initialized (e.g., SELECT 10 + col1), it represents a constant; we only stream the second value.
If the second is initialized (e.g., SELECT col1 + 20), we only stream the first value.
If both are initialized (e.g., SELECT 10 + 20), the stream is computed entirely from constants—no data access required.

This plan reduces the number of streamed columns, simplifies memory usage, and improves overall performance by reducing unnecessary computation and data transfer. ‍

‍

‍

Optimizing Data Chunk Size

When streaming a single column—such as a numeric value—we frequently transmit only a fewer bytes per row. This is highly inefficient, especially considering that a typical Maximum Transmission Unit (MTU) is 1,460 bytes. Sending tiny amounts of data per message importantly slows down streaming. To avoid this, we should aim to send data in chunks that approach or exceed the MTU. While calculating the exact size of each row at runtime may be inefficient, we can approximate chunk sizes or adopt a fixed-row batching strategy—for example, streaming 20 to 30 rows per chunk. This ensures each read operation transmits adequate data to make efficient usage of the network. Even if the last packet is not completely filled, the overall throughput is much higher. For example, streaming 30 rows totaling 21,700 bytes results in 14 full MTUs and a final partial packet with 1,260 bytes. This is far more efficient than sending individual 723-byte messages.

In another case, if each row is only 48 bytes, batching 30 rows yields 1,440 bytes, almost filling a single MTU. In contrast, sending 30 individual 48-byte packets introduces crucial overhead—each TCP packet includes a header (~40 bytes), and each must be acknowledged, further reducing throughput. The table below shows a benchmark measuring streaming performance utilizing asynchronous gRPC on a single thread. The test was run in our local environment:

As shown, performance increases dramatically with larger row sizes and less individual messages. Batching helps saturate the available bandwidth, reduces overhead from headers and acknowledgements, and minimizes context switches.

By carefully choosing chunk sizes and minimizing the number of tiny messages, we can importantly improve the efficiency of asynchronous gRPC streaming, especially under high-load conditions.

Parallelizing Stream Execution

Reading data from 2,160 workers utilizing a single thread is highly inefficient. To velocity up processing, we must utilize all available CPU cores. But how can we do this erstwhile each stream depends on the output of the erstwhile one? For simple queries like:

SELECT * FROM table

opportunities for parallelism are limited. The output is written straight to a socket, typically handled by a single thread. Even if we effort to prefetch data sequentially utilizing multiple threads, it won’t aid in cases like ORDER BY, which requires globally sorted results. To address this, we request a different strategy. alternatively of a single stream, we should open N parallel streams, where N equals the number of threads the CPU can handle. Each thread processes a condition of the data in parallel. erstwhile data processing is complete, we can apply parallel-friendly algorithms (e.g., parallel sort, hash-based aggregation) to handle operations like ORDER BY, GROUP BY, and HAVING.

Let’s look at a more complex query:

SELECT vat_percent, COUNT(*) AS count_products, AVG(net_price) AS avg_net_price FROM products GROUP BY vat_percent;

In this case, we want to:

Group rows by vat_percent (e.g., 5, 8, 23)
Count how many products fall into each VAT group
Calculate the average net_price for each group

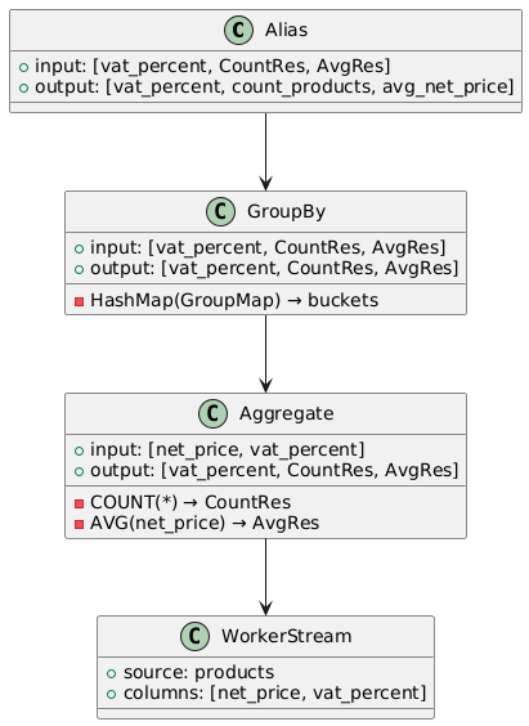

Since data is distributed across all workers, we can process it in parallel by assigning different workers to different threads. For example, with 36 threads, each thread can handle responses from 60 workers (2160 / 36).

To avoid bottlenecks due to shared locking (e.g., utilizing a single mutex), we introduce buckets to distribute access. Each thread maintains multiple buckets—say, 4 buckets per thread—to reduce competition. In this case, we’d have 144 buckets total (36 × 4).

Each incoming row is processed as follows:

By employing multiple individual streams and parallel threads, the volume of data fetched and reduced can be importantly increased compared to single-threaded processing. For instance, utilizing 4 reading threads distributed across 16 workers results in crucial improvements in synchronous streaming performance, as illustrated in Table 4. The observed speedup ranges from about 75% to 160%, clearly demonstrating the benefits of parallelization. This improvement results from better CPU core utilization and more efficient network resource usage, enabling higher throughput and reduced latency.

Drawbacks of Asynchronous and Synchronous Streaming Approaches

In my erstwhile articles, I encouraged implementing asynchronous request handling and streaming due to its possible velocity advantages. However, this is not always the optimal choice in all scenario. In our case, the number of threads (e.g., 48 or 64) is importantly lower than the number of workers (2,160), making it infeasible to handle all individual responses concurrently. Although the gRPC interface supports callbacks for asynchronous consequence handling, our streams are implemented recursively, and adopting recursive callbacks would necessitate a comprehensive redesign, which we aim to avoid.

There are 3 alternatives:

Coroutines: Rewriting all streams as coroutines would let us to elegantly resume processing as shortly as data becomes available. Coroutines supply clean, non-blocking flow control and avoid manual state management. However, the downside is the crucial engineering effort required to retrofit all existing stream and callback into a coroutine-compatible structure—something that is both time-consuming and error-prone given our current codebase.
std::promise / std::future: Another option is to usage std::future in each stream to block on get() until the completion queue fulfills the corresponding std::promise. erstwhile data is available, the promise is resolved, resuming the blocked thread. While easier to implement than full coroutine support, this method incurs additional context switching:
A thread blocks on get(),
Another thread sets the value in the completion queue,
Then we re-block on the next Next() call for the next chunk. This results in 2 thread switches per message, leading to inefficient CPU usage.
Semaphores: it provides a lightweight synchronization mechanics that avoids constructing fresh promise/future pairs for all chunk. We can signal availability and resume the waiting thread with little overhead. However, semaphores inactive affect context switching (a thread waits, another signals), and do not fundamentally solve the latency introduced by frequent thread suspensions and resumptions.

Table 5 presents results for streaming large volumes of data from 2160 workers utilizing 16 threads. As observed, the lower context-switching overhead in the synchronous method leads to faster streaming performance compared to the asynchronous approach—at least in scenarios where we are only fetching data without additional processing.

Moreover, erstwhile streaming specified a large volume, the slower initialization phase of the synchronous method becomes comparatively negligible. However, this advantage depends on the readiness of the workers. If workers take importantly longer to initialize, the asynchronous method may become more beneficial due to its ability to overlap initialization and data transfer.

Is it possible, then, to enable streaming in our current implementation without a major rewrite? Yes, by utilizing synchronous streaming. In this approach, each call to the Read method blocks until a fresh row becomes available. Although this blocking mechanics is little efficient—since threads stay idle while waiting alternatively than processing responses concurrently—it offers a importantly simpler implementation within the constraints of our existing architecture.

Could we combine the benefits of both approaches to mitigate their drawbacks and accomplish optimal performance?

Initialization Speed: Asynchronous streaming shines during initialization due to the fact that it can start data collection in parallel across all 2160 workers. In contrast, synchronous streaming must wait for each individual to become ready sequentially, leading to longer startup times.
Context Switching Overhead: Asynchronous streaming incurs crucial context switching due to the fact that completion queues and streams operate on multiple threads. Each fresh event requires resuming the appropriate stream, frequently causing costly thread switches. Coroutines reduce thread switches but inactive require managing coroutine states. Synchronous streaming blocks until data is ready, eliminating the request for separate threads managing completion queues and reducing context control overhead.

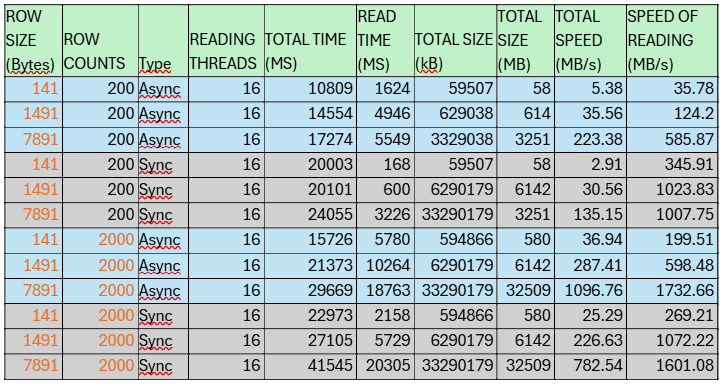

To illustrate these trade-offs, Table 6 presents a benchmark comparing both methods on a smaller dataset, where individual initialization time has a more crucial impact on the full streaming duration. The results item that excessive context switching in asynchronous streaming reduces overall throughput. The "Total Time" column reflects the full duration of the streaming process, including individual initialization, while the "Read Time" isolates the performance erstwhile all workers are ready and data transfer begins.

We observe that the asynchronous version exhibits importantly lower Speed of Reading, sometimes even up to 10 times slower than the synchronous approach. However, erstwhile comparing full times, the asynchronous method is only about 2 times slower for smaller chunks (e.g., 141 bytes) and around 50% slower for larger chunks. This difference stems from the fact that synchronous streaming spends most of its time initializing all 2160 workers sequentially, whereas asynchronous streaming initializes them rapidly but suffers from overhead due to frequent context switching.

To leverage the strengths of both approaches, we propose a hybrid streaming method:

Each streamer internally uses the asynchronous method to initiate and handle streams independently.
Crucially, streams do not share a common completion queue, eliminating the request for a dedicated thread to manage event tags and thus drastically reducing costly thread context switches.
During initialization, we concurrently trigger all individual streams and wait until each signals readiness by advancing their individual completion queues.
Once all workers are ready, fetching rows is performed by straight calling Next on each worker’s completion queue — akin to synchronous reads but without invoking the Read method on the stream object itself.

This hybrid approach merges the fast parallel initialization of asynchronous streaming with the minimal context-switching overhead of synchronous reading. By avoiding shared completion queues and enabling direct, thread-local access to stream events, it effectively eliminates the major performance bottlenecks of both models.

As a result, the strategy achieves superior end-to-end throughput, especially under advanced concurrency, where conventional synchronous streaming would stall during individual setup and asynchronous streaming would endure from frequent context switches.

Table 7 presents benchmark results for this hybrid implementation. As shown, the hybrid version is not only faster than the asynchronous variant, but in many cases besides outperforms synchronous streaming by respective factors, peculiarly for larger message sizes and advanced parallelism.

Memory management Considerations

At the final phase of streaming optimization, memory efficiency becomes critical—especially erstwhile processing millions or hundreds of millions of rows. mediocre memory management can lead to excessive consumption, triggering disk spill and dramatically reducing query performance. 1 of the key challenges we faced in Terrarium was the representation of aggregated data. Since aggregation can happen both on the gateway (for instance erstwhile we JOIN tables) and individual workers, we needed a flexible mechanics to separate between raw and pre-aggregated values and handle them accordingly. To keep a uniform data interface, we treat all value as a variant, which may encapsulate different data types. erstwhile we receive pre-aggregated data from workers, we serialize it as a std::map<variant, variant>. For example, this JSON:

{ "STD": 123.4 "AVG": 43.5 'COUNT" 34 }

is represented internally as:

A variant containing a std::map
Each map entry consists of a variant string key and a variant double or integer value

In contrast, for raw aggregates, we represent the data as a std::vector<variant>:

[123.4, 43.5, 34]

This allows for more compact in-memory representation.

Memory Usage Breakdown On 64-bit architectures, common STL containers like std::string, std::map, and std::vector usage about 24 bytes for metadata (e.g., size, capacity, pointer). A variant typically requires 32 bytes, due to alignment and type-discrimination overhead.

Pre-Aggregated (Map-Based) Representation:

Map node overhead: 32 bytes (left, right, parent + color/alignment)
Key (variant string): 32 bytes
Value (variant double/int): 32 bytes
Total per entry: ~96 bytes
Total per map (3 entries): ~3 × 96 + 32 (variant as map container) = 320 bytes

Raw (Vector-Based) Representation:

Vector container as variant: 32 bytes
3 × value variants: 3 × 32 = 96 bytes
Total: 128 bytes

Impact at Scale

Assuming 3 aggregated values per row and 100 million rows, the difference is substantial:

Pre-aggregated (map): 100M × 320 bytes = ~89.4 GB
Raw (vector): 100M × 128 bytes = ~35.7 GB

This demonstrates a 60% simplification in memory usage by choosing a leaner interior structure. erstwhile operating at advanced scale, data representation isn't just a plan decision—it’s a performance multiplier. By optimizing how we store and stream data, we prevent memory exhaustion, reduce cache pressure, and destruct unnecessary allocations—ultimately enabling Terrarium to handle large-scale analytics efficiently.

Summary

In this article, we explored how Terrarium optimizes streaming by addressing key challenges specified as excessive stream count, inefficient data chunking, limited parallelism, and complex asynchronous handling. By redesigning the streaming architecture to usage chained streams with precise data fetching strategies and batching data into appropriately sized chunks, we importantly improved network utilization and throughput. Additionally, leveraging parallel processing across multiple individual nodes and threads allowed us to full utilize available CPU resources while maintaining correctness in operations like GROUP BY and aggregation.

Finally, we demonstrated that a hybrid streaming approach—combining the fast initialization of asynchronous streaming with the low overhead of synchronous reads—offers the best performance in practice. This approach effectively minimizes context-switching costs while maximizing concurrency, leading to superior throughput and scalability.

These optimizations collectively enable Terrarium to efficiently process large distributed datasets, paving the way for more responsive and scalable SQL query handling over gRPC streams.

Mateusz Adamski, elder C++ developer at Synerise
